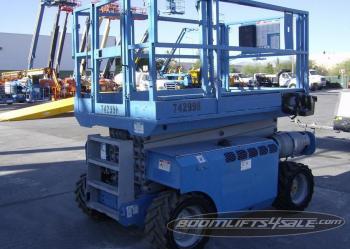

GENIE 2668 / 3268 SCISSOR LIFT
- Options:
- Specs:
- Condition:
- Quantity: In stock
GENIE 2668RT SPECIFICATIONS
Engine
MAKE Kubota / Gas or Diesel
GROSS POWER 20 hp 14.9 kw
Operational
OPERATING WEIGHT 6373.6 lb 2891 kg
FUEL CAPACITY 15 gal 56.8 L
HYDRAULIC SYSTEM FLUID CAPACITY 16.5 gal 62.5 L
MAX SPEED 3.8 mph 6.1 km/h
TIRE SIZE 12x23.5
A. OVERALL LENGTH 8.8 ft in 2670 mm
B. OVERALL WIDTH 5.7 ft in 1730 mm
C. HEIGHT W/ RAILS 7.6 ft in 2320 mm
D. WHEELBASE 5.7 ft in 1730 mm
E. GROUND CLEARANCE 7.5 in 190 mm
F. MAX PLATFORM HEIGHT 26 ft in 7920 mm
G. PLATFORM WIDTH 61 in 1550 mm
H. PLATFORM LENGTH 98.8 in 2510 mm
I. DECK EXTENSION 57.1 in 1450 mm
GENIE 3268 SPECIFICATION
Platform
Max Working Height 38.5 ft in 11750 mm
Max Platform Height 32 ft in 9750 mm
Max Platform Weight Capacity 1000.9 lb 454 kg
Platform Length 98.8 in 2510 mm
Platform Width 61 in 1550 mm
Deck Extension 57.1 in 1450 mm
Dimensions
A. Overall Length 8.8 ft in 2670 mm
B. Overall Width 5.7 ft in 1730 mm
C. Height w/ Rails 7.6 ft in 2320 mm
D. Wheelbase 5.7 ft in 1730 mm
E. Ground Clearance 7.5 in 190 mm
Platform
F. Max Platform Height 32 ft in 9750 mm
G. Platform Width 61 in 1550 mm
H. Platform Length 98.8 in 2510 mm
I. Deck Extension 57.1 in 1450 mm
GENIE 2668 / 3268 scissor lift
Available in 26' platform or 32' platform
Duel fuel or diesel
Call or email for current stock info@boomlifts4sale.com
