GENIE S60 S65 Boom lift
- Options:
- Specs:
- Condition:
- Quantity: In stock
GENIE S-60X & S65

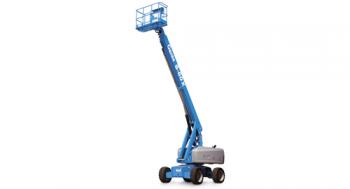

Genie S-65 Boom lift
Fixed-width axles allow faster setup
Active oscillating axle option enhances traction on rough terrain
360˚continuous rotation turntable for quick positioning
Self-leveling platform with hydraulic platform rotation
Ramped boom control system provides smooth boom functions and finer control
Virtual pivot primary boom aligns machine’s center of gravity for lower machine weight
Positive traction drive maintains equal power to all drive wheels
Genie S-60X Boom lift
Virtual pivot primary boom aligns machine’s center of gravity for lower machine weight
Positive traction drive maintains equal power to all drive wheels
Fixed-width axles allow faster setup
Active oscillating axle option enhances traction on rough terrain
360˚continuous rotation turntable for quick positioning
Dual capacity — select either 500 lbs (227 kg) or up to 1000 lbs (454 kg) within restricted outreach for up to three occupants plus equipment
Ramped boom control system provides smooth boom functions and finer control
Similar products
Perfect to work in congested area with 4 ft 11 in (1.50 m) wide chassis and 2 ft. 8 in. (87 cm) turning radius.
40' platform - 46' working height
Working Height*:
36 ft (11.14 m)Horizontal Reach:
21 ft 5 in (6.53 m)Up & Over Clearance:
12 ft 8 in (3.86 m)
Working Height:
51 ft 10 in (15.97 m)Horizontal Reach:
25 ft (7.62 m)Up & Over Clearance:
23 ft 6 in (7.16 m)
Working Height*:
67 ft 11 in (20.87 m)Horizontal Reach:
40 ft 11 in (12.47 m)Up & Over Clearance:
26 ft 8 in (8.13 m)
Working Height:
84 ft (25.77 m)Horizontal Reach:
60 ft (18.29 m)Up & Over Clearance:
29 ft (8.83 m)
Working Height:
141 ft (43.15 m)Horizontal Reach:
69 ft 9 in (21.26 m)Up & Over Clearance:
75 ft 6 in (23.01 m)
Working Height:
46 ft (14.20 m)
51 ft (15.72 m)Horizontal Reach:
31 ft 8 in (9.65 m)
36 ft 8 in (11.18 m)Lift Capacity:
500 lbs (227 kg)
Working Height:
64 ft 4 in (19.78 m)
71 ft (21.80 m)Horizontal Reach:
50 ft 10 in (15.48 m)
56 ft 2 in (17.10 m)Lift Capacity:
500/1000 lbs** (227/454 kg)**
500 lbs (227 kg)
Working Height:
86 ft (26.20 m)
91 ft (27.70 m)Horizontal Reach:
71 ft 6 in (21.80 m)
76 ft 6 in (23.30 m)Lift Capacity:
500/1000 lbs** (227/454 kg)**
500 lbs (227 kg)
Working Height:
186 ft (56.69 m)Horizontal Reach:
80 ft (24.38 m)Lift Capacity:
750 lb (340 kg)
JLG has a robust line of straight stick boomlifts.
More
Ultra Series
Dominate the job site with the Ultra Series. The ultra-strong 100,000 PSI steel of the boom gives you the confidence and support you need to handle 1,000 lb capacity. The exclusive controlled arc regulates speeds at the edges of the work envelope so that you feel the same velocity in all positions for enhanced comfort.
Genie S125 self propelled boom lift
Fully proportional platform controls with ramp up/down feature
Three quiet, powerful diesel engine options
Standard 8 ft (2.44 m) self-leveling platform with hydraulic rotation
Super Boom models combine maximum reach with exceptional maneuverability
Genie 2032 electric scissor lift
Proportional controls for lift and drive functions
On-board diagnostics for easy troubleshooting
Multiple disc brakes provide smooth deceleration
Emergency stop at both platform and ground controls
Solid, non-marking tires
AC power to platform
JLG has a robust and extensive line of articulating manlift available.
