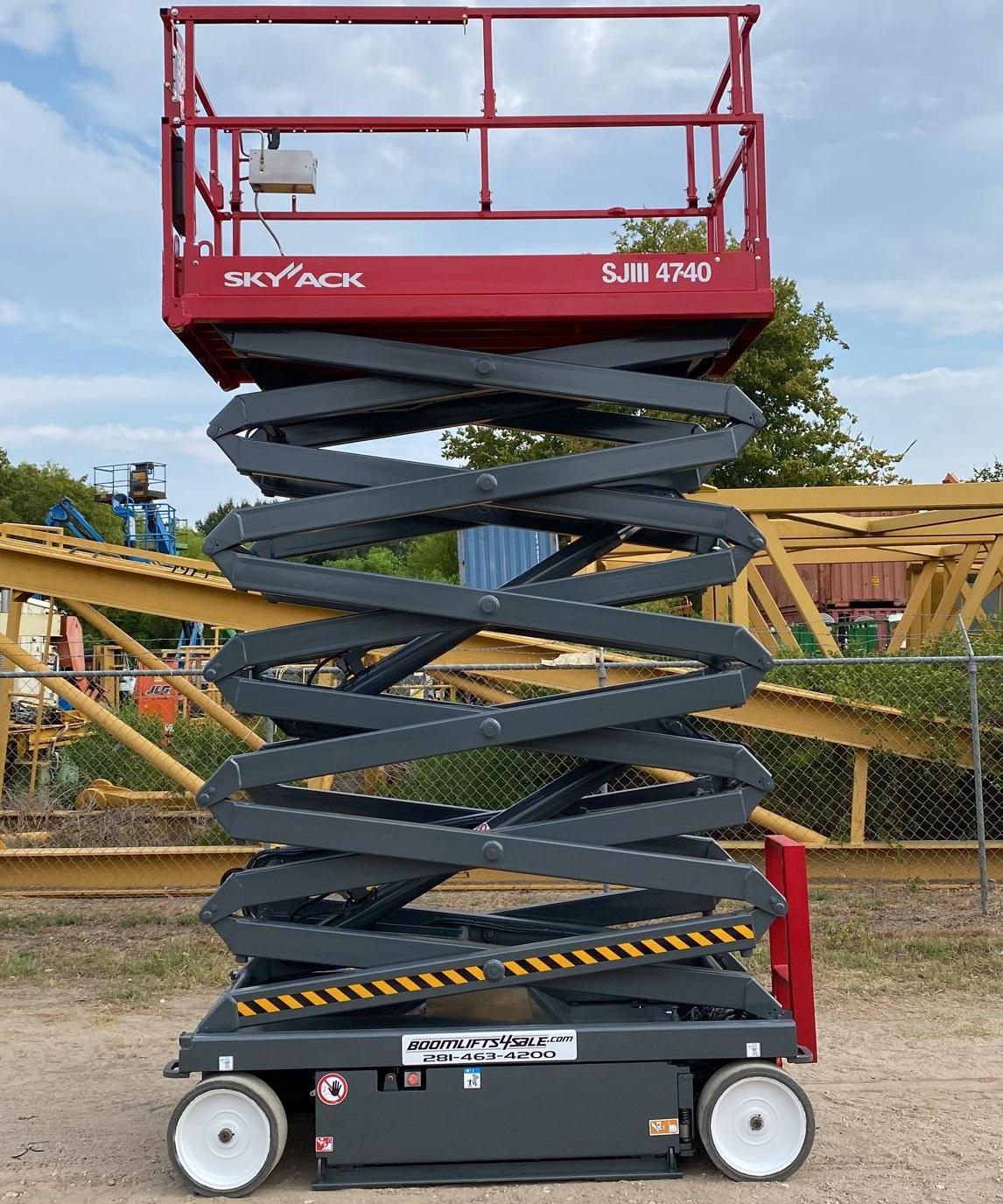

Skyjack 4740 electric scissor lift - Refurbished
- Options:
- Specs:40' platform, 47" wide
- Condition:Refurbished
- Quantity: 8
Skyjack 4740 scissor lift Refurbished / Reconditioned
New non marking tires, new batteries , new dual voltage charger (manufacturer warranty), new deck rollers, new upper control box & cable (manufacturer warranty)
Rebuilt lower controls with new switches - warranty, motor and pump rebuilt or replaced
Any hoses and cable that are worn are replaced
New ANSI inspection
Skyjack 4740 Scissorlift Specifications:
Work Height 44’ 11” (13.69 m)
Raised Platform Height 38’ 11” (11.86 m)
Lowered Platform Height 56” (1.41 m)
Overall Width 47" (1.19 m)
Overall Length 94.5" (2.40 m)
Stowed Height (Rails Up) 99.5” (2.53 m)
Stowed Height (Rails Down) 79.5” (2.03 m)
Platform Width (Inside Dimension) 42" (1.07 m)
Platform Length (Inside Dimension) 86" (2.19 m)
Extension Deck (Roll Out) 3' (0.91 m)
Wheelbase 73" (1.85 m)
Weight 6,467 lbs (2,934 kg)
Gradeability 25%
Turning Radius (Inside) 17.5” (0.45 m)
Turning Radius (Outside) 99” (2.51 m)
Lift Time (With Rated Load) 68 sec
Lower Time (With Rated Load) 41 sec
Drive Speed (Stowed) 1.9 mph (3.0 km/h)
Drive Speed (Raised) 0.5 mph (0.8 km/h)
Maximum Drive Height Full Height
Capacity 770 lbs (349 kg)
Distributed Capacity (Main Platform) 505 lbs (229 kg)
Distributed Capacity (Extension Deck) 265 lbs (120 kg)
Local Floor Load (With Rated Load) 139 psi (956 kPa)
Overall Floor Load (With Rated Load) 233 psf (1137 kg/ m2)
Maximum # of Persons 3
Tire Type Solid, N/M
Tire Size 16 x 5 x 12
Skyjack 4740 electric scissorlift - Refurbished
45' working height
39' platform
47" wide
deck ext
non-marking tires
